ADO A20+ Electric Folding Bike 20 inch City Bicycle 250W Hall Brushless Gear DC Motor SHIMANO 7-Speed Rear Derailleur 36V 10.4Ah Removable Battery 25km/h Max speed up to 60km Max Range IPX5 Double Shock-absorption Aluminum alloy Frame – White

Support Free Shipping for countries:

Denmark, Spain, Ireland, Netherlands, Portugal, Lithuania, Hungary, Slovakia, Romania, Finland, Bulgaria, Croatia, Austria, Italy, Sweden, France, Czech Republic, Belgium, Poland, Estonia, Greece, Germany, Luxembourg, Latvia, Slovenia. (Extra Freight will be charged in remote areas.)



Highlights

G-DRIVE Pedal Assist Control System

The ADO G-Drive frequency conversion control system can quickly receive signals, and detect, collect and analyze the vehicle to respond to different road conditions. Different power assist modes can be switched at will while riding and collected in real-time to effectively reduce energy loss.

Removable 10.4Ah Lithium Battery

The lithium-ion battery of ADO electric bicycle has the functions of overcharge, overdischarge, overcurrent, and short circuit protection. After 1000 charging times, the battery still maintains 80% of its capacity.

The battery cover is sealed and waterproof, effectively isolating the internal lithium-ion battery, protecting your safety and extending battery life.

250W Powerful Brushless Geared Hub Motor

The newly upgraded high temperature resistant inner ring has better heat dissipation, which can reduce the decay speed of the motor magnet and ensure a longer service life. The maximum motor torque is 40N.m, and the power is very strong, which can take you farther and conquer various road conditions.

IPX5 Waterproof Headlights

E-Mark certified headlight, Z-Mark certified taillight. High brightness LED headlight with wide angle lighting to help you ride safely.

Shimano 7-Speed Transmission

ADO choose Shimano 7-speed derailleurs for the A20+ because of Shimano’s reputation and proven performance. The Shimano 7-speed transmission rides very well when combined with the 3-speed adjustable power assist.

20 inch Anti-slip Tires

20 x 1.95 inch wheels constructed from lightweight aluminium alloy with a sturdy six-axle design for stability.

HD LCD Display

886 LCD meter, can display speed, power, mileage, gear, full display function, clearer in the sun; with cell phone USB charging port, you can charge your cell phone at any time.

Efficient and Fast Braking System

Adopted front and rear dual disc braking system, fast heat dissipation design, reduce bike brake reaction time, ensure emergency braking, smooth braking, more safe and reliable.

Specification



General	Brand	ADO
	Type	20*1.95 Inches
	Model	A20+
	Color	black/white
Vehicle Performance	Dimensions L×W×H	Overall unit: 1550*530*1100mm

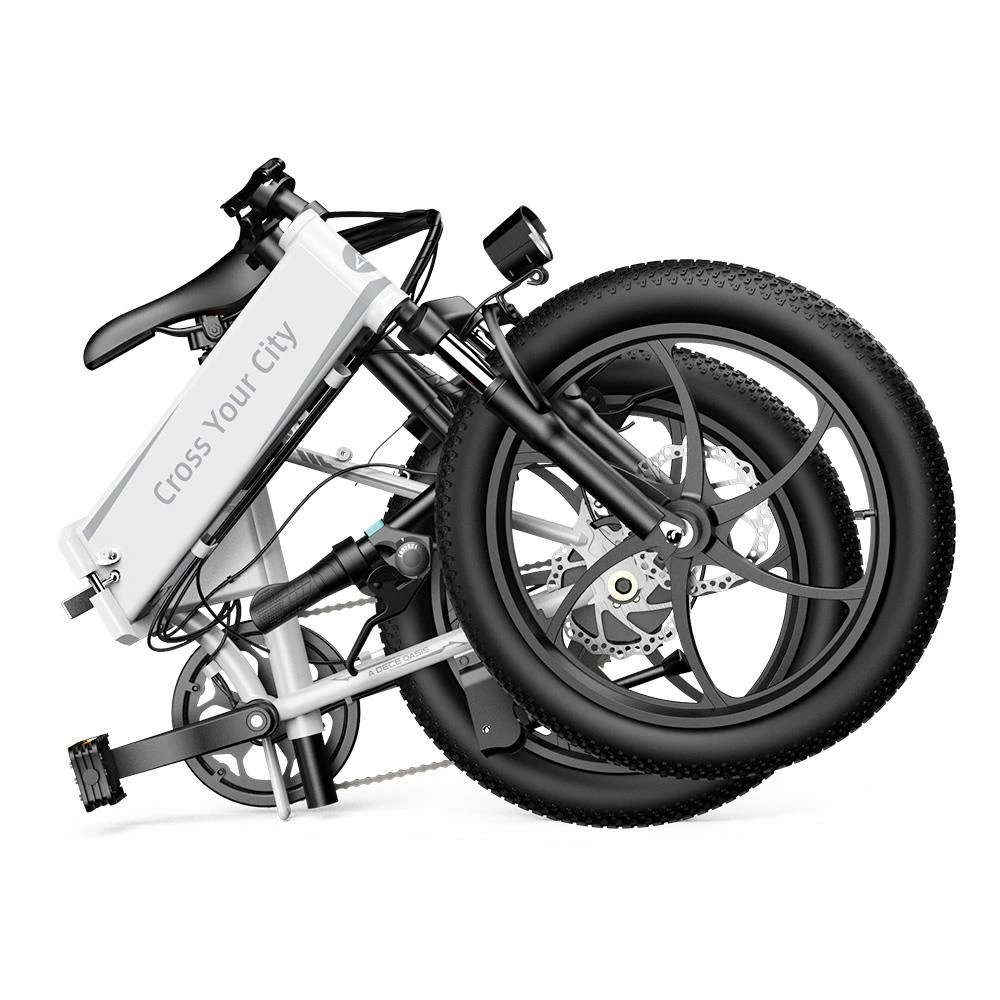

		After folding: 900*430*700mm
	Package Size	875*380*660mm
	Operating Temperature	-10~40°C
	Storage Temperature	-20~50°C
	Net Weight	24kg
	Gross weight	25.5kg
	IP Rating	IPX5
	Max. Speed	25km/h
	Transmission	Shimano 7 speed
	Electric range	<60km
	Assisting range	<80km
	Shock-absorption	Front fork and addle tube double Shock-absorption
	Brake	Front: Mechanical disc brake
		Rear: Mechanical disc brake
	Charging time	6 hours
	Payload	≤120kg
Head of Bicycle	Material	Aluminum alloy
	Handgrip Material	TPR
	Foldable	Yes
	Adjustable of height	Yes,with protective jacket
	Small bell	Electronic speaker
	Brake handle	left/Right
	Mobile Phone Charging Station	5V/1A USB type A+ Charging Base
Front Wheel	Drivenmethod	/
	Material	Aluminum alloy
	Hub type	Integrated molding hub
	Size	20*1.95 Inch
	Tire	Rubber pneumatic tire
	Brake	Mechanical disc brake
Rear Wheel	Drivenmethod	Motor drive wheel
	Material	Aluminum alloy
	Hub type	Integrated molding hub
	Size	20*1.95 Inches
	Tire	Rubber pneumatic tire
	Brake	Mechanical disc brake
Main Frame	Material	Aluminum alloy
	Type	Main Girder Folding
	Parking	Parking Stand
	Battery location	Built-in main girder
	Reflect Sticker	On saddle tube
	Max Steering Angle	90°(each side)
	Rear Tale Light	/
	Air pump	Yes
	Foot Pad Material	Nylon
	Foot Pad Type	Folding
	Carrying handle	Yes
Battery	Material	Lithium battery
	Type of batteries	Removable portable charging
	Battery number	40PCS
	Rated Voltage	36V
	Charge cut-off voltage	42V
	Rated Capacity	36V10.4AH
	Charging Temperature	0~40°C
	Battery ManagementSystem	Over-heating, Short circuit, Over- current, Over-charge protection
Charger	Input Voltage	100~240V, 50/60Hz
	Output Voltage	42V DC
	Output Current	2A
	Output Power	84W
Motor	Brand
	Motor Type	Hall Brushless Gear DC Motor
	Rated Voltage	36V
	Rated Power	250W
	Max. Power
	Torque	40 N.m
	Rated speed	380 r/min
System Control	Turn On/Off	Visible button on the speed control handle
	Riding Modes Switch
	Front Light Switch
	Display Type	886 Type HD LCD Display, Clearly under the sunshine
	Display Contents	Speed, mileage, Gear, glitch
	Electronic booster starting point	5 KM start (CE )(Can change to 0KM start by enduser)
	Under voltage protection	31±2V
	Over current protection	15±2A
