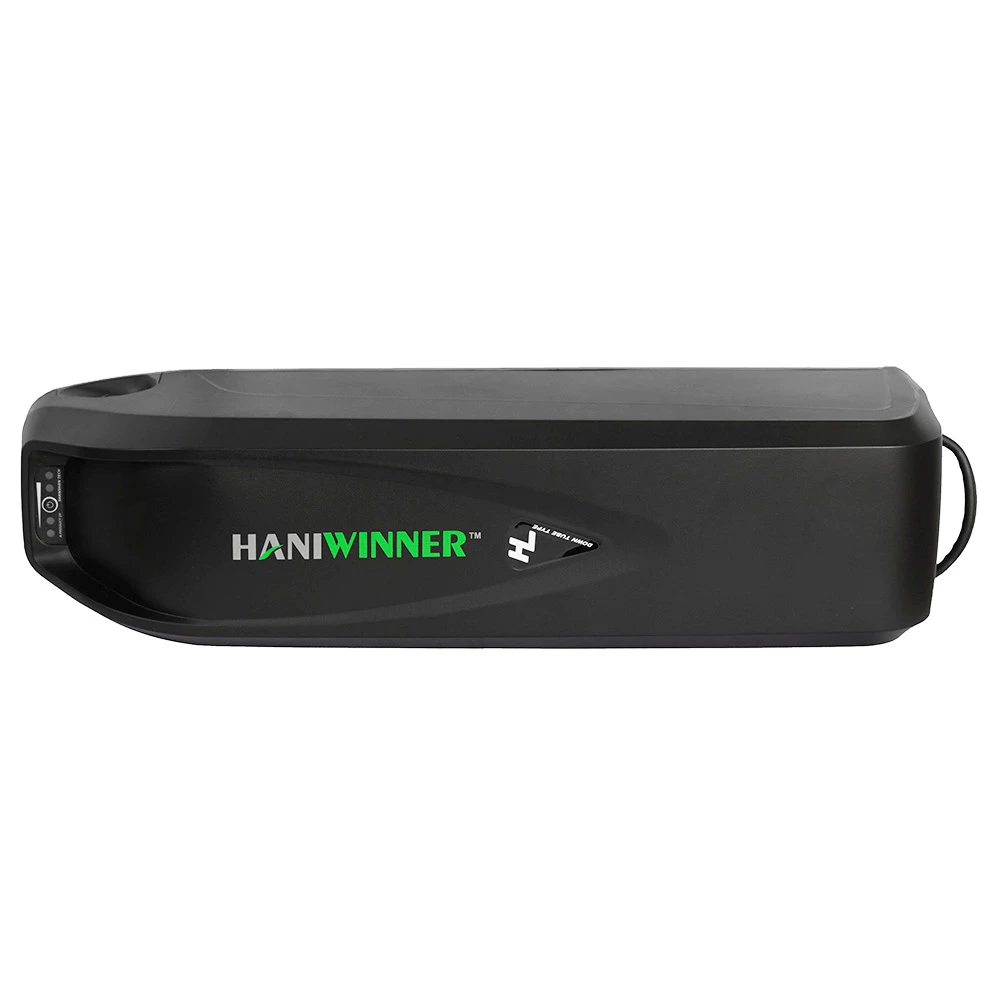

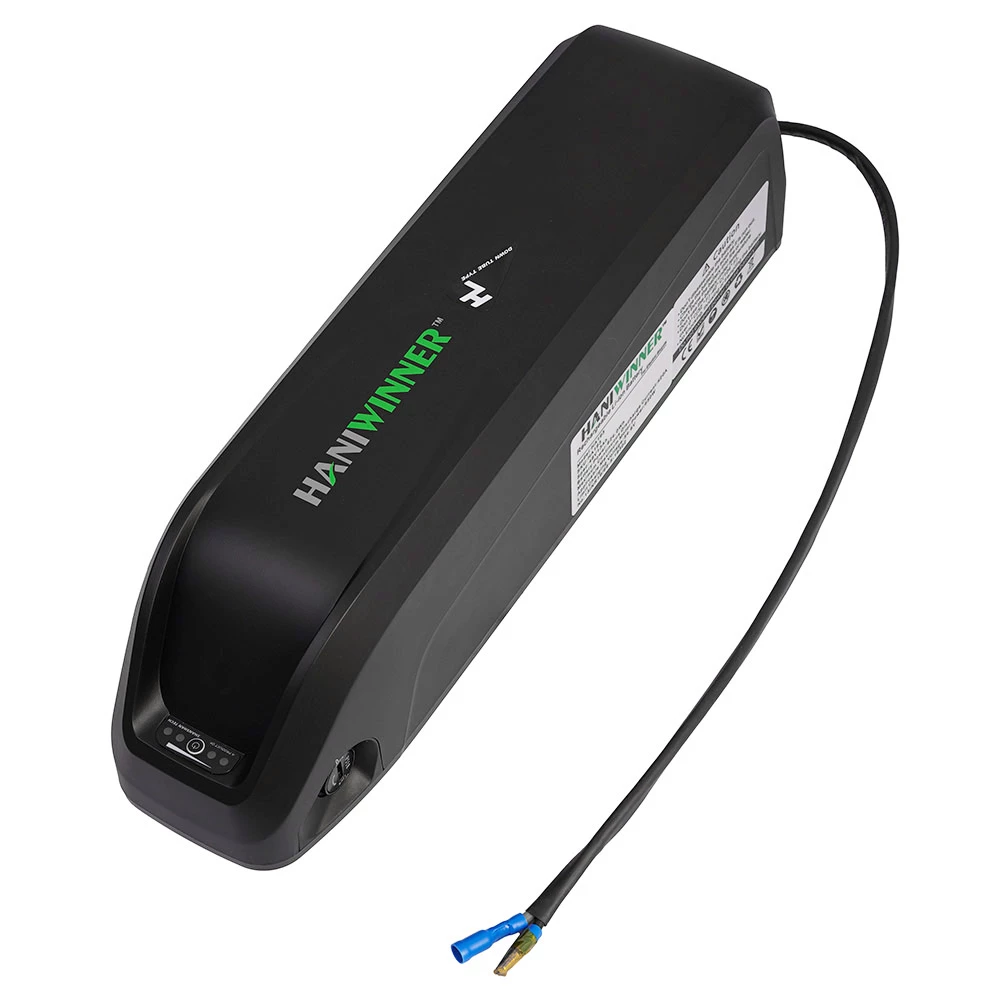

HANIWINNER Hailong HA193 Electric Bike Rechargeable Lithium Battery 48V 13Ah 624W with Charger – Black

Highlights

 User-friendly Design

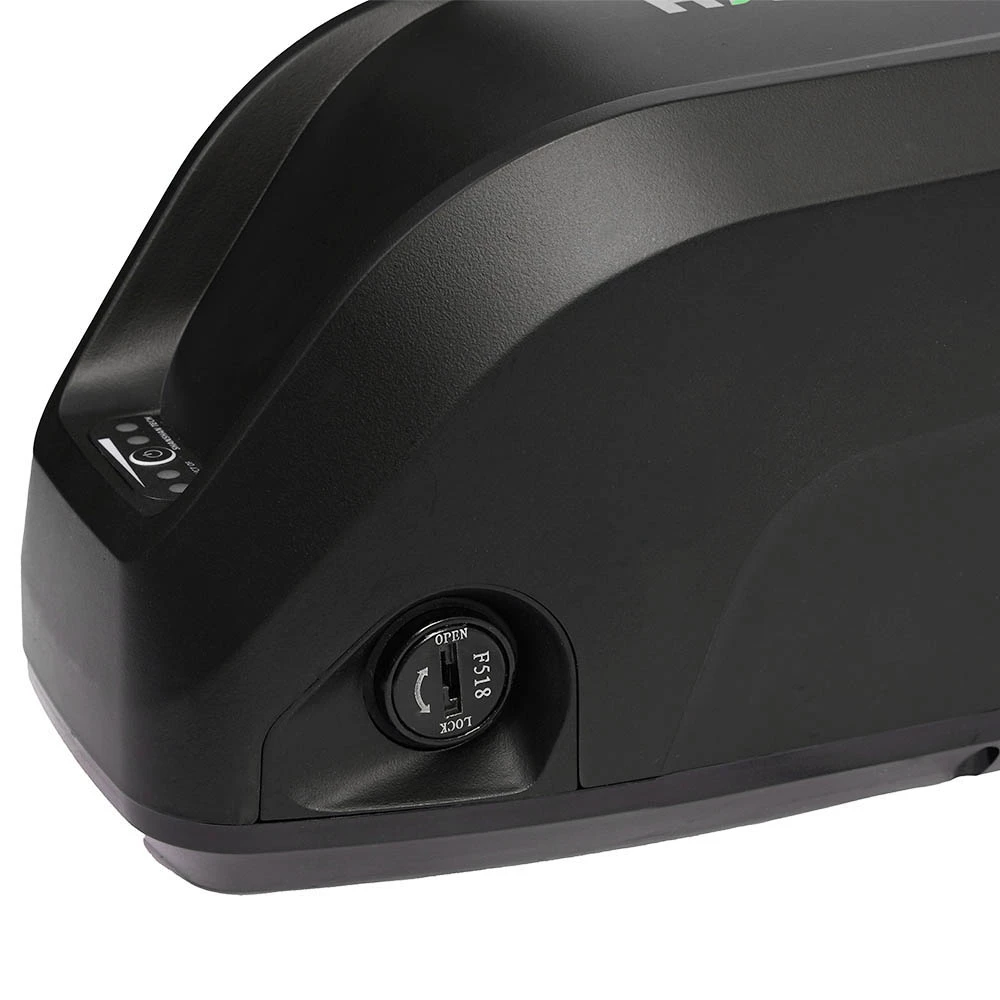

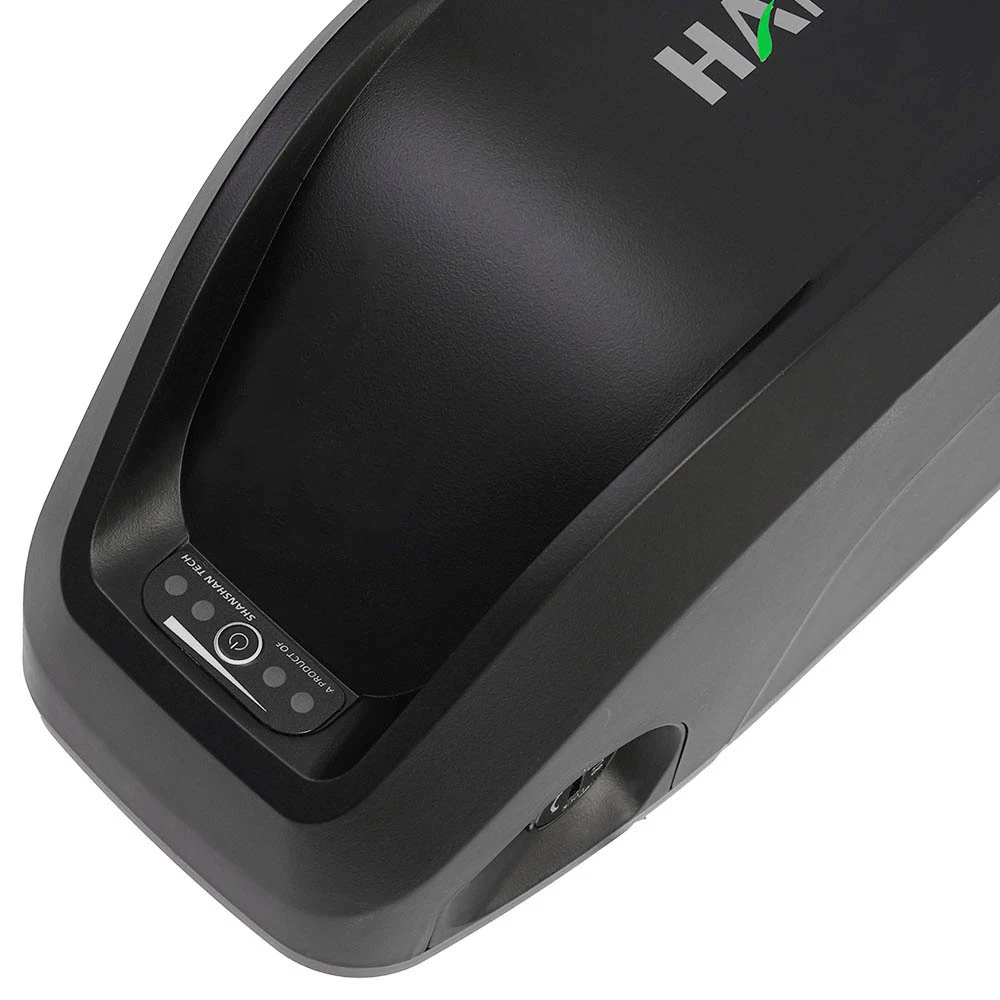

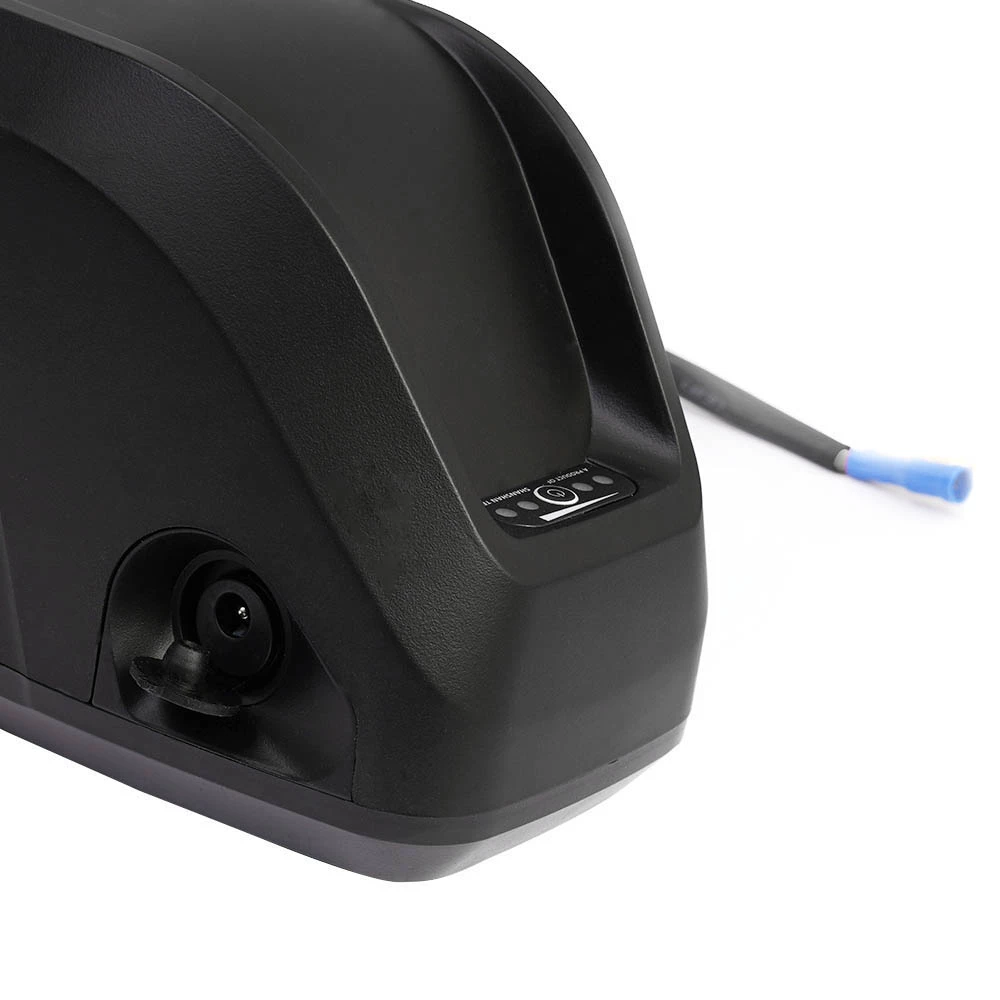

The lightweight design makes the battery easy to install and remove. The black hard plastic shell protects the battery effectively and an LED battery level indicator can inform you of charging in time. The USB port can charge your phone and other devices outdoor. Equipped with a battery holder, just need to use the key to open the safe lock.

Safe to Use

Built to the highest standards that have been tested. When the motor is overloaded, the system automatically switches off to protect the technical components against damage. The battery is fully sealed and designed to be using long, even on muddy roads.

BMS Protection Board

The high-quality battery is equipped with a 30A BMS protective plate, which prevents overcharge, over-discharge, over the current and short circuit, and ensures a long life expectancy.

Stable and Durable

The input and output are more stable and its large capacity makes the service life of the battery longer.

Ergonomic Design and Widely Applicable

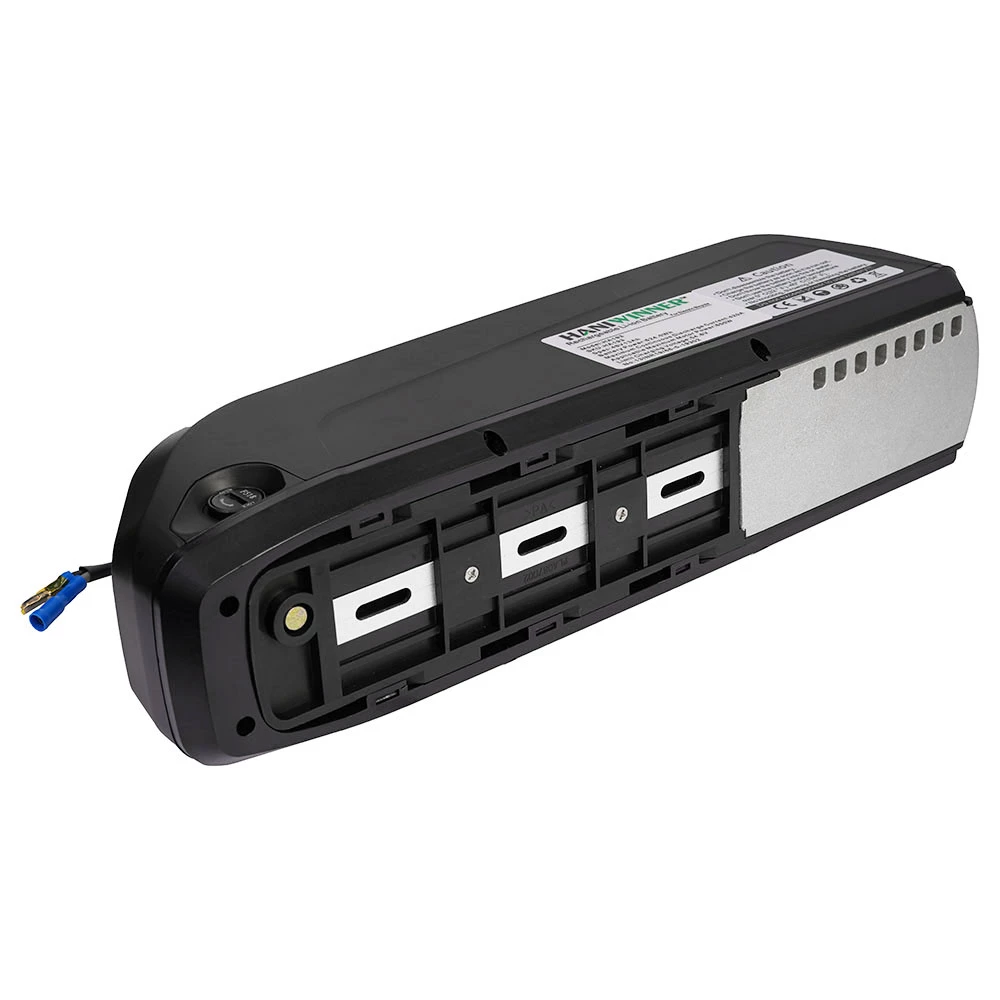

The electric bike battery pack has a mounting bracket that will mount to most water bottle screw holes in the frame. Compatible with 48V electric bikes, bicycles, mountain bikes, and more.

Note:

1. When charging the battery, please use the regular brand charger. The charging time should not exceed 6 hours.

2. It is strictly forbidden to place batteries in water and in fire, so as to avoid getting close to the heat source. It is forbidden to use metal and conductive materials to plug in the charging and discharging interfaces.

3. If you do not use the battery for a long time, please keep the battery power between 40% and 70%, it is recommended that the battery be charged every two months; otherwise, the battery may be damaged, and this irreversible damage is not within the warranty.

4. Please keep these products and accessories properly and keep them away from children.

5. Unauthorized self-repair and modification of parts may cause damage to the product and such man-made damage is not covered by the warranty.

6. Please use this product according to your local laws, regulations and restrictions.

7. PLEASE BE CAREFUL BEFORE ORDERING: Our battery fits in most motor kit, but exclude: Bosch. If you can not confirm your engine, please contact us.

Specification

Suitable Bike Brand(Including but not limited to)	PLENTY, SAMEBIKE, GALAXY, Giant
Model	HA193
Maximum Operating Current	≤15A
Apply to Electric Motor Power	≤500W
Charging Temperature	0 to 45°C
Discharge Temperature	-20 to 65°C
Save recommended recharge(store in one month)	≥95%
Rated voltage&Rated power	48V 13Ah
Battery Power	624Wh
Battery capacity	2600mAh
Number of batteries	65PCS
Resistance of the battery	≤100mΩ
Type of charge	CC/CV (constant current, constant voltage)
Standard charging current	2A
Maximum charging current	5A
Limited Charging Voltage	54.6V
With charger	54.6V 2A
Continuous discharge current(BMS)	30A
Peak discharge current	75A
Discharge protection voltage	39V
Life	≥800 cycles with DOD 80%
Display of power level	YES
Power level display switch	YES
Power switch	YES
USB Charging port for the phone	YES
Security lock	YES
Charge connection	XLR
Package Contents	1 x Battery 1 x Basic holder with keys and other parts 1 x Charger (EU plug) 1 x User Manual
